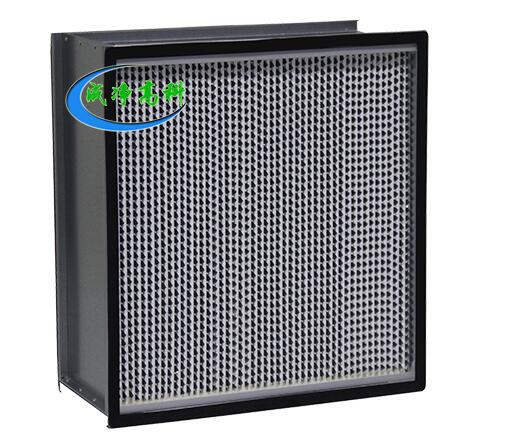

金属框纸隔板空气过滤器
贵州贵阳超细玻纤高效过滤网|贵州贵阳百级H13H14高效过滤器
Hepa filter
特点Features
●效率高、阻力低、风速均匀性好
●适用于各种局部净化设备和洁净厂房的末端净化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop end purification
构成材料及运行条件
Materials and operating conditions
●框材：镀锌板外框或铝合金外框
●External frane：Galvanized the casing outside the box or aluminum alloy
●密封物：聚胺脂胶
●Sealant：Gel-glue
●分隔物：胶板纸
●Filter media：JiaoBanZhi
●密封条：醋酸乙酯
●Gasket：EVA
●滤料：玻纤滤纸
●Filter media：Glass fiber
●使用温度、湿度：80℃、80%以内
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
容尘量 Dust capacity (g) |
|
CJ-H3-L1 |
305×305×150 |
250 |
≤220 |
≥99.99 |
200 |
|
CJ-H3-L2 |
320×320×220 |
400 |
≤220 |
≥99.99 |
350 |
|
CJ-H3-L3 |
484×484×150 |
600 |
≤220 |
≥99.99 |
400 |
|
CJ-H3-L4 |
484×484×220 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-H3-L5 |
726×484×220 |
1500 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-L6 |
968×484×220 |
2000 |
≤220 |
≥99.99 |
1200 |
|
CJ-H3-L7 |
610×610×150 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-H3-L8 |
915×610×150 |
1500 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-L9 |
1220×610×150 |
2000 |
≤220 |
≥99.99 |
1200 |
|
CJ-H3-L10 |
630×630×220 |
1600 |
≤220 |
≥99.99 |
900 |
|
CJ-H3-L11 |
945×630×220 |
2400 |
≤220 |
≥99.99 |
1400 |
