YORK/约克空调高效空气过滤器
重庆F5F6F7F8F9中效空气过滤器生产厂家 成都F5F6F7F8F9中效空气过滤器生产厂家
特灵中央空调初效空气过滤器

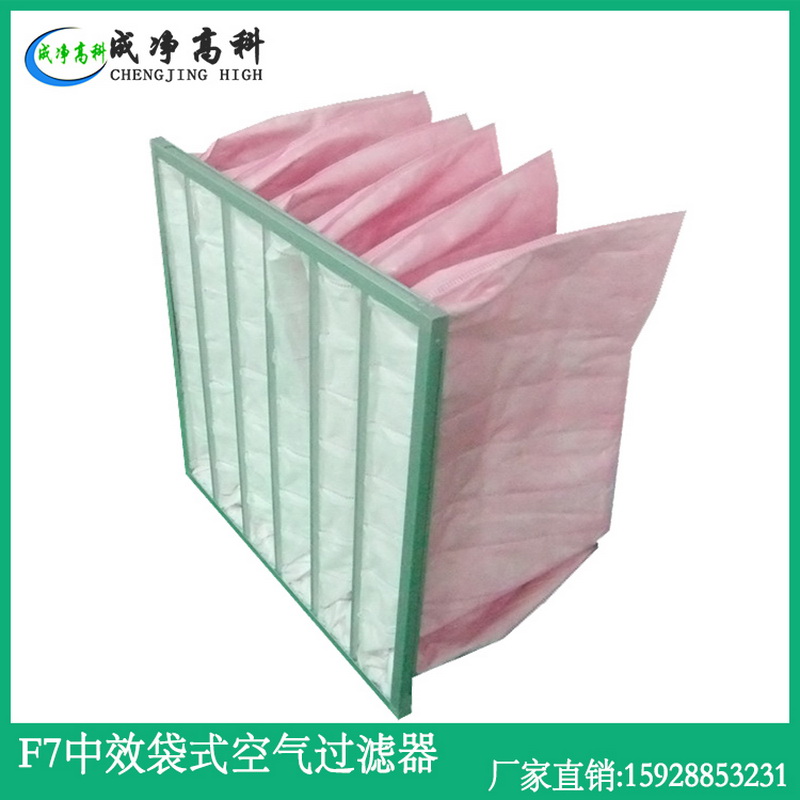

中效袋式空气过滤器
Air filter bag in effect
特点Features
●可重复使用多次
●阻力小、风量大
●广泛运用于空调系统的中级过滤
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：F5(白色)45%（浅黄色）、F6(绿色)65%（桔红色）、
F7(粉红色)85%（紫色）、F8(浅黄色)95%（深黄色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封条：醋酸乙酯
●Gasket：EVA
●使用温度、湿度：80℃、80%以内
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Initial resistance(Pa) |
效率（级别） Efficiency (class) |
滤料颜色 Liao color |
袋数 pockets |
|
CJ-M1-D1 |
495×295×500mm 20″×12″×20″ |
1000m3/h |
50Pa F5
55Pa F6
60Pa F7
65Pa F8
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8 （比色法） colorimetric |
白色F5 White 绿色F6 Green 粉红F7 pink 浅黄F8 yellow |
5 |
|
CJ-M1-D2 |
495×495×500mm 20″×20″×20″ |
1800m3/h |
5 |
|||
|
CJ-M1-D3 |
595×295×500mm 24″×12″×20″ |
1300m3/h |
6 |
|||
|
CJ-M1-D4 |
595×495×500mm 24″×20″×20″ |
2200m3/h |
6 |
|||
|
CJ-M1-D5 |
595×595×500mm 24″×24″×20″ |
2600m3/h |
8 |
|||
|
CJ-M1-D6 |
495×295×600mm 20″×12″×24″ |
1200m3/h |
5 |
|||
|
CJ-M1-D7 |
495×495×600mm 20″×20″×24″ |
2200m3/h |
5 |
|||
|
CJ-M1-D8 |
595×295×600mm 24″×12″×24″ |
1600m3/h |
6 |
|||
|
CJ-M1-D9 |
595×495×600mm 24″×20″×24″ |
2700m3/h |
6 |
|||
|
CJ-M1-D10 |
595×595×600mm 24″×24″×24″ |
3200m3/h |
8 |
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
