Lyophilizer Technical Parameters冻干机技术参数表欣谕

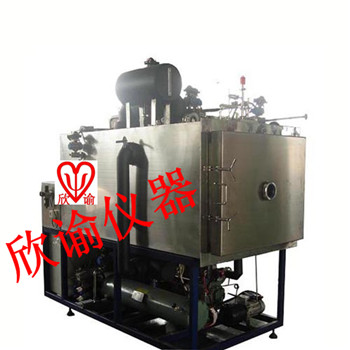

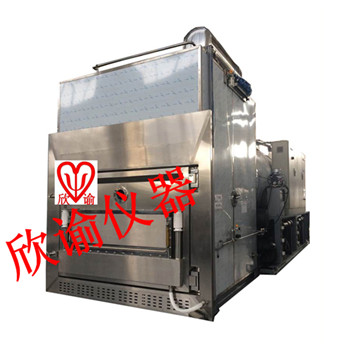

XY-FD-S40 (SIP、CIP)真空冷冻干燥机 Lyophilizer-40 (SIP、CIP)
制造标准Manufacture Standards |
cGMP |
||||||
A、干燥箱(含41.86m2板层)Chamber (with41.86m2 shelves) |
|||||||
序号SN |
名称 Name |
型号/规格/材质 Model/Specifications/Material |
数量 Number |
||||
1 |
干燥箱Chamber |
AISI 316L 不锈钢 |
1套 |
||||
2 |
板层Shelves |
AISI 316L 不锈钢 |
1套 |
||||
尺寸:2000×1495×24mm Dimensions:2000×1495×24mm |
14+1层 |
||||||
3 |
箱门Door |
AISI 316L 不锈钢(部分) AISI 316L stainless steel (Section) |
1套 |
||||
4 |
干燥箱视镜 Viewing port (chamber) |
DN150 mm 带延时照明灯 DN150 mm With time delay head lamp |
1个 |
||||
5 |
箱门视镜 Viewing port (door) |
DN150 mm |
1个 |
||||
6 |
验证孔Validation port |
3D设计 3D design |
1个 |
||||
7 |
安全插销门锁系统 Door lock system with safe bolt |
“XY”独特设计 Unique design by XINYU |
1套 |
||||
8 |
制品测温探头 Product sensors |
Pt-100 热电阻 A级 Pt-100 Hot resistance A Level |
3支 |
||||
9 |
导热油温度探头 Temperature sensors (thermal fluid) |
Pt-100 热电阻 A级 Pt-100 Hot resistance A Level |
2支 |
||||
性能参数Performance parameters |
|||||||
1 |
设计压力Design pressure |
0.15Mpa(绝对压力0.25MPa) |
|||||
2 |
设计温度 Design temperature |
128℃ |
|||||
3 |
光洁度Finish |
Ra≤0.4µm |
|||||
4 |
平整度Level |
±0.5mm/m |
|||||
5 |
板层最低温度(导热油进口) Shelves temperature Min |
-55℃ |
|||||
6 |
板层最高温度(导热油进口) Shelves temperature Max |
+80℃ |
|||||
7 |
板层温度均匀性 Shelves temperature uniformity |
±1°C(空载平衡后) ±1°C(soak stage) |
|||||
8 |
搁板间距Spacing |
120mm |
|||||
9 |
干燥箱外形Chamber type |
长方型 Rectangular |
|||||
10 |
保温层Insulation |
硅酸铝和聚氨酯发泡材料 Aluminum silicate and polyisocyanurate foam |
|||||
11 |
开门方向Open direction |
根据用户要求确定 According to user’s requirements |
|||||
12 |
开门角度Open angle |
大于110度 More than 110° |
|||||
13 |
视镜方向 Position of viewing port |
根据用户要求确定 According to user’s requirements |
|||||
14 |
门密封条 Sealing strips for doors |
T型硅橡胶 T-shaped silicone rubber |
